Current Ac 1a/5a Digital Multi - Function Meter Easy Operating 48 *
48mm Mini Size
1. Product Description:
Series of WD-DIUH Single-phase current/voltage/power factor meters
are used for measuring and monitoring the power distribution
system. This series of meter can measure the voltage, current,
active power, reactive power, apparent power, power factor,
frequency, active energy, reactive energy and some other power
parameters.
It combines the measurement, the analysis and the operation
together, makes the information become clearer, and the operation
become easier.
2. Technical Parameters:
| Technical Index | Value |
Input
| Nominal value | Voltage AC:100V,220V,380V; Current AC: 1A/5A |
| Overload | Continuous: 1.2 time/1s; Instant: 10 time/1s |
| Frequency | 45-65Hz |
| Consumption | <0.5VA |
| Accuracy | 0.2% |
Function
| Display | LED or LCD |
| Communication | RS485,Modbus-RTU protocol |
| Alarm | One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC,
high, low, unbalance alarm etc. |
Analog
| DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ) |
| Input: 2-4 channel dry contacts, power inside, optocoupler
insolation |
| Output: 2 switch output,normal open contact of relay |
| Contact capacity: 3A/30VDC,3A/250VDC |
Power Supply
| Voltage Range | AC/DC85-270V |
| Power consumption | <5VA |
| Insulation resistance | ≥100MΩ |
Power Frequency
Withstand Voltage | 2kv/1min |
Environment
| Temperature | Opertation: -25-55℃, Storage: -20℃-75℃ |
| Humidity | ≤93RH, no condensation, without corrosive |
| Attitude | ≤2500m |
3. Ordering Code
| Model Name | Basic Data | Model No | Dimension(mm) | Cut-out (mm) |
Single-Phase
Current & Voltage & Power Factor Meter | - LED Display
- Input: Single Voltage & Current
- Transformation ratio: adjustable
- Measurement: Single Phase Current/ Voltage/Power Factor
| WD-2IUH-□ | 120*120 | 111*111 |
| WD-9IUH-□ | 96*96 | 92*92 |
| WD-3IUH-□ | 80*80 | 76*76 |
| WD-AIUH-□ | 72*72 | 68*68 |
| WD-DIUH-□ | 48*48 | 45*45 |
4. How to Set the Meter?
CT=Current transformer primary current value/Current transformer
secondary current value
DC current CT Value:
CT=Shunt primary current value/5(Signal input DC 75mV)
CT=Display value/1(signal input DC 20mA,DC 4-20mA)
PT=Voltage transformer primary voltage value/Voltage transformer
secondary voltage value
PT=display value/input value
1)Indicator light:"k":thousand,K means that the practical value is
display is 1000 times.
2)Display character explanation:
- Character Instruction Parameter and specification
SET Setting 0000-9999
CT Current ratio 0001-9999
PT Voltage ratio 0001-9999

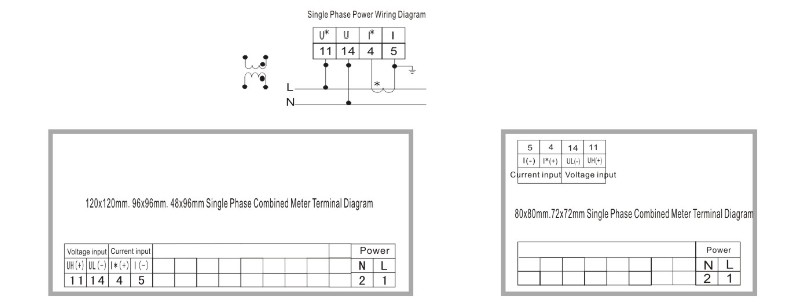

5. Wiring Connection and Ternimal Diagram:
6. Who is Weidian Union Company?
Wei Dian Union(Hubei) Technology Co.,Ltd. Located in Optics Valley
of China--- Wuhan East lake high-tech development Zone, established
in 2008, with factory area of 50002 and 120 employees, We are the member of National Standardization
Committee for Electric Meters & Instruments.
Wei Dian Union are specialized in manufacturing electric measuring
instrument and current transformer with a concentration in R&D,
Production, sales & after sales, which guarantee us strictly comply
with standard of GB/T22264-2008 & GB/T7676-98 to operate. Now , we
have ISO9001-2008 certificate, digital meter have passed CE, while
marine meter approved by China Classification Society (CCS).
Our products are widely used in transmission & distribution power
system of shipping, aviation, railway, oil, chemistry, metallurgy,
electric, power station, intelligent building, industrial
instrument, etc.
With the principle of “Pursuing for precision and perfection,
unifying thinking and behavior ”, continuous exploration and
innovation to meet customers’ demands. Reliable quality and good
after-service receive more and more trust from users.
