    Microprocessor Multifunction Energy Meter 2 Ways Energy Pulse Output

    Ask Lasest Price
    Brand Name : WDLYCH
    Model Number : WD-9EF
    Certification : ISO9001/CE
    Price : Negotiable | 10 Piece/Pieces (Min. Order)
    Payment Terms : T/T, Western Union
    Delivery Time : 7 days after advanced payment
    • Product Details
    • Company Profile

    Microprocessor Multifunction Energy Meter 2 Ways Energy Pulse Output

    Microprocessor Multifunction Energy Meter 2 Ways Energy Pulse Output
    1. Quick Overview:

    Three Phase multi-function meter is designed for electric monitoring in power system, industrial & mining enterprise, public facilities and intelligent building. It is able to set data on site and directly substitute normal power transmitter and auxiliary unit. Widely used in kinds of controlling & substation and distributing automation system.


    2. Technical Parameters:

    PerformanceParameters
    Signal InputVoltageRated ValueAC100V,450V,690V
    OverloadContinue: 1.2times; Instant: 10 times
    Power Consumption﹤1VA
    Impedance≥500KΩ
    Accuracy Class0.5
    CurrentRated ValueDC4-20mA/0-20mA; AC1A/5A
    OverloadContinue: 1.2 times; Instant: 2 times
    Power Consumption﹤0.4VA
    Impedance﹤2mΩ
    Accuracy Class0.5
    Internet3P3W, 3P4W
    Frequency40-60Hz, Inaccuracy: 0.1Hz
    PowerActive/reactive; Accuracy: 0.5
    EnergyActive/ reactive energy; Accuracy: 0.5
    Power SupplyVoltageAC220V,AC/DC65-270V,DC24V,AC380V,450V,690V
    Power Consumption≤5VA
    OutputCommunicationRS485 Communication, MODBUS-RTU Protocol
    Pulse Output2 Ways Energy Pulse Output
    Relay Input4 Ways Switch Value Input
    Relay Output4 Ways Relay Output
    Analog Output1-4 Ways Transducing Output
    EnvironmentWorking Condition-10-50℃
    Storage Condition-20-75℃

    3. Standards:
    • DL/T614-1997 Multi-function Energy Meter
    • GB/T17883-1999 0.2S&0.5S Grade Static AC Active Energy Meter GB/T17882-1999 2 & 3 Grade Static AC Reactive Energy Meter
    • GB/T13850-1998 AC Electric Units Shift to Analog or Digital Signal Electric Measuring Units Refer to International Standard
    • IEC62053-22:2003 Electric Measuring instruments(AC)--Special demands— Part 22
    • Static Energy Meter(0.2S & 0.5S Grade)
    • IEC62053-23:2003 Electric Measuring Instruments(AC)-Special demands--Part 23:
    • Static Reactive Meter(0.2S & 0.5S Grade):
    • IEC61010-1: 2001 Security demands of Measuring, Controlling and Laboratory Electric Instruments
    • IEC61000-2-11 Electromagnetic(EMC)-- Part 2-11
    • IEC60068-2-30 Environment Testing--Part 2-30

    4. Wiring Diagram:

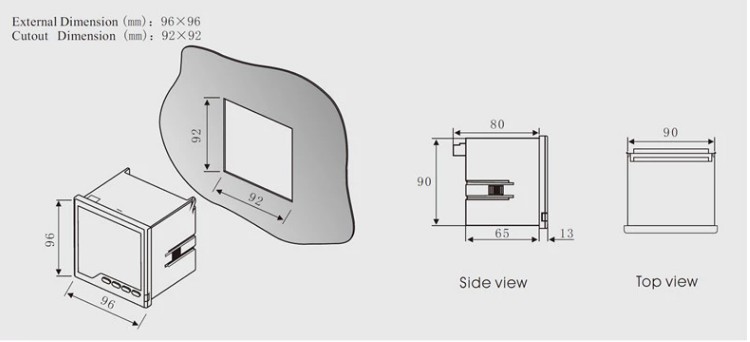

    5. Installation Dimension:



    6. Main Features:


    • Suit for LV & HV voltage system

    • High accuracy IEC62053-22 class 0.5s

    • Build-in MODBUS-RTU via RS485 port

    • Pluggable modules for BACnet MS/TP; Ethernet, DI; DO; AI; AO

    • C02 carbon dioxide emission calculation

    • True-RMS

    • Time-of-use and power quality monitoring

    • ISO9001:2000/CE certificate


    6. Optional Functions:
