DC 220v Marine Digital Panel Ammeter 4-20ma Output Low Power Consumption


1. Overview

The WD-3ID Series is a line of ampere meters that measures current parameters. They are used for monitoring and controlling energy flow in DC systems.
Readings are displayed on the brilliant 4 digits LED display. All WDLYCH models offer integration with external systems using MODBUS RTU protocol and an on-board RS485 serial communication port.
Optional analog, digital, relay and alarm output is available via field-swappable plug-in communications modules.
The line has been field-tested for accuracy, versatility, durability.


2. Technical Parameters:

3. Application:

• DC current meter & metering
• On-site metering of DC consumption and generation of different DC electrical systems
• DC transducer:Locally installed transducer reads current and outputs digital pulse and/or analog signals

4. Industries:

• Renewable energy & green systems
• DC generation by solar photovoltaic (PV) arrays, wind turbines, inverter & battery monitoring, DC consumption of electric vehicle (EV) charging stations
• Transportation systems
• DC consumption of rail / railway, subway and trains and transit systems and related DC equipment
• Telecommunications
• DC consumption on cell / cellular towers and equipments

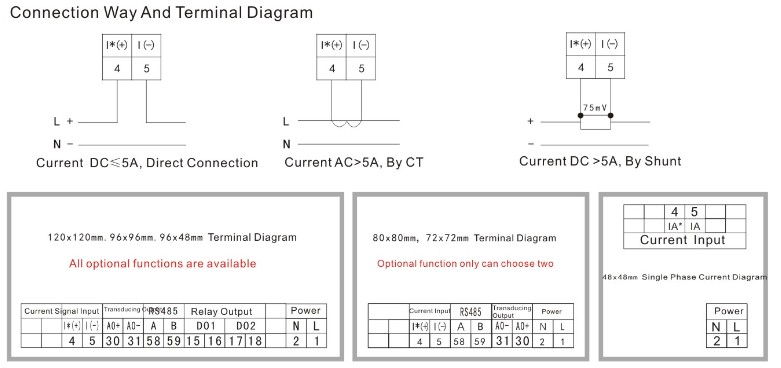

5. Typical Wiring:
